Base Station: RVREF

Here you can find details about base station hardware, realt-time parameters, and static observation data .

Hardware Details

  • Reciever: Leica SR530

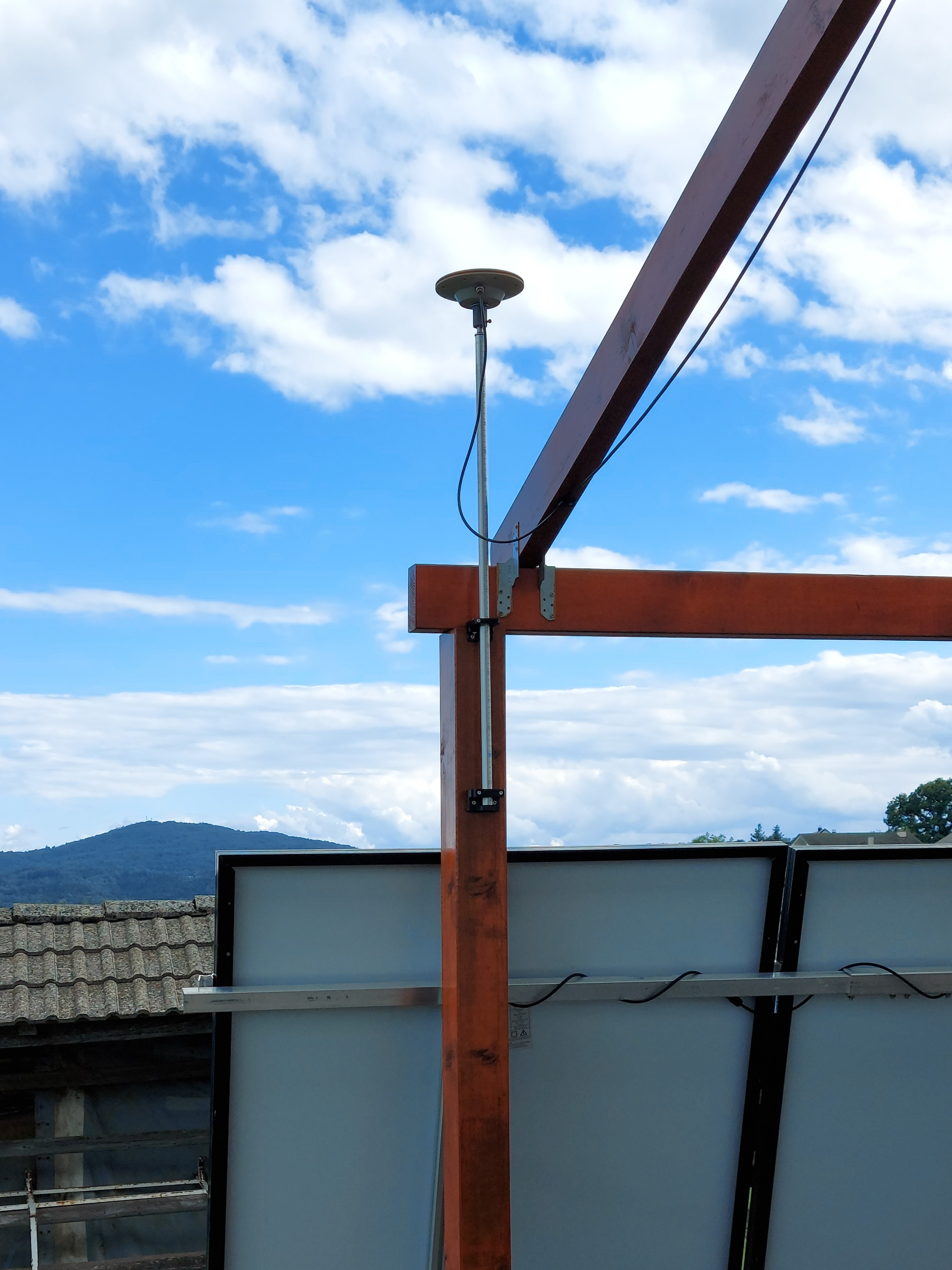

  • Antenna: Leica AT502 (Antenna file: AT502)
  • Signals: GPS (L1/L2)

Real-Time Parameters

  • Protocol: RTCM 3.0
  • Update rates:
    • Data: 1.0 sec
    • Coordinate info: 10 sec
    • Antenna info: 15 sec

Observations Data

  • Local data logging

    • Storage: Internal PCMCIA > CF Card
      • Format: GPS500 raw data (Leica GEODB)
      • Log rate: 5 sec
      • Observation data is stored for last 7 days as files in 1-hour intervals.

  • Remote data logging

    • Storage: NTRIP Server
      • Format: Raw RTCM3
      • Log rate: 1 sec
      • Observation data is stored indefinitely as 1-hour interval files.
      • Data availabile only on request
    • Storage: Data Archive
      • Format: RINEX 3.02
      • Log rate: 5 sec
      • Observation data is stored indefinitely as 1-hour interval and daily files.

Static observation data is availabile free of charge, and can be downloaded from Data Archive, or by using data request form.

Station Coordinates

Coordinate System: WGS84

WGS84 Latitude Longitude H (ellip.) (m)
LLH 45.94591919° N 14.86277575° E 369.686
DMS.sss 45° 56’ 45.309067" N 14° 51’ 45.992709" E 369.686
DDMM.m 45° 56.755151’ N 14° 51.766545’ E 369.686
  X (m) Y (m) Z (m)
ECEF +4294252.8386 +1139625.4136 +4561335.5021

Coordinate System: SLO-D96TM (EPSG: 3794)

SLO-D96TM E (m) N (m) H (ortho.) (m)
E/N/H 489360.870 89574.950 323.250
